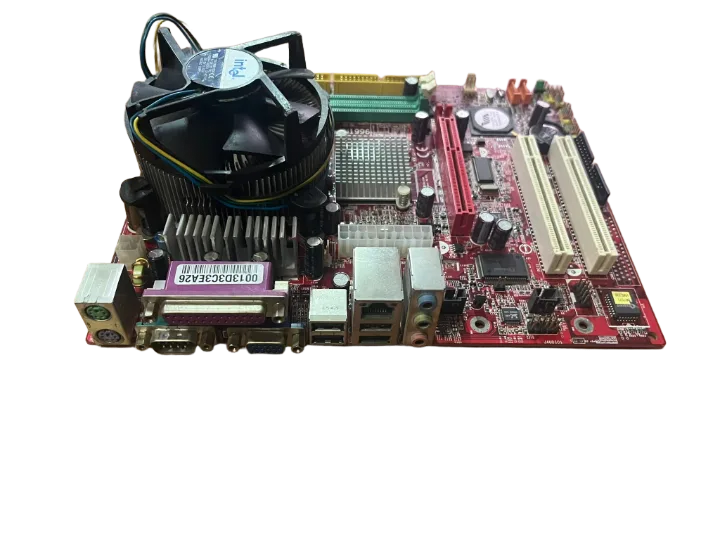

MSI Pm8m.2-v (7071) SOKET 775 Ddr-400 Anakart + CPU +cpu Fan(2 EL Ürün)

MSI PM8M2-V (MS-7971) SOKET 775 DDR-400 mATX ANAKART​
2 EL ÜRÜN
PENTIUM-4 2.66 CPU VE CPU FAN DAHİL
PANEL SACI VARDIR
TESTLERİ YAPILMIŞTIR SORUNSUZ ÇALIŞMAKTADIR
AHM BİLGİSAYAR İYİ ALIŞVERİŞLER DİLERİZ
---------------------------------------------------------------------------------------------------------------------------------------------------
Supports Intel® Pentium 4 / Celeron D /processors in LGA775 package.
Supports up to Pentium 4 5XX and Celeron D 3XX sequence processor.
Supoprt Intel 04B and 04A processors.
Supports Intel Hyper-Threading technology.
Supports up to 3.8GHz, FSB @ 800/533MHz
Chipset
VIA® P4M800 Chipset
- 64bit P4 processors FSB 800MHz
- 64bit DDR SDRAM memory I/F (333/400MHz)
- 32bit AGP I/F (66MHz) for 4x/2x mode
- 8bit V-Link I/F (66MHz) with peak bandwidth of 266MB/s
VIA® VT8237R Chipset (487 BGA)
- Integrated Hardware Sound Blaster/Direct Sound AC97 audio
- Ultra DMA 66/100/133 master mode PCI EIDE controller
- ACPI & PC2001 compliant enhanced power management
- Supports Serial ATA RAID 0, RAID 1
- Supports USB2.0 up to 8 ports
Main Memory
Supports Four memory banks using two 184-pin unbuffered DDR333/400 DDR DIMM.
Supports up to 2GB memory size.
Supports 2.5v DDR SDRAM.
Due to the High Performance Memory design, motherboards or system configurations may or may not operate smoothly at the JEDEC (Joint Electron Device Engineering Council) standard settings (BIOS Default on the motherboard) such as DDR voltage, memory speeds and memory timing. Please confirm and adjust your memory setting in the BIOS accordingly for better system stability.
Example: Kingston HyperX DDR500 PC4000 operates at 2.65V, 3-4-4-8, CL=3.
For more information about specification of high performance memory modules, please check with your Memory Manufactures for more details.
Slots
One AGP (Accelerated Graphics Port) 8X/4X slot.
Two PCI 2.2 32-bit PCI bus slots (support 3.3V/5V PCI bus interface).
On-Board IDE
An IDE Controller on the VT8237R chipset provides IDE HDD/ CD-ROM with PIO, Bus Master and Ultra DMA133/100/66 operation modes.
Can connect up to four IDE devices.
Serial ATA 150 controller integrated in VT8237R
Up to 150MB/s transfer speed - support RAID 0, RAID 1
Can connect up to 2 Serial ATA drives
Video
S3 Graphics Unichrome Pro Integrated Graphics core
LAN
Realtek 8201CL
- With external 10/100 Base-T LAN transformer.
- Integrated Fast Ethernet MAC and PHY in one chip
- Supports 10Mb/s and 100Mb/s auto-negotiation operation.
- Compliance with PCI v.2.2 and PC99 standard.
- Supports ACPI power management.
Audio
AC'97 link controller integrated in VIA® VT8237R
Realtek ALC655 6-channel S/W audio codec.
- Compliance with AC97 v2.2 Spec.
- Meet PC2001 audio performance requirement.
On-Board Peripherals
1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
1 serial ports (COM A)
1 parallel port supports SPP/EPP/ECP mode
8 USB ports (Rear x 4/ Front x 4)
1 RJ-45 LAN jack
Line-In/Line-Out/Mic-In port
1 VGA port
BIOS
The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
Dimension
9.65 in. (L) x 7.48 in. (W) MicroATX Form Factor
