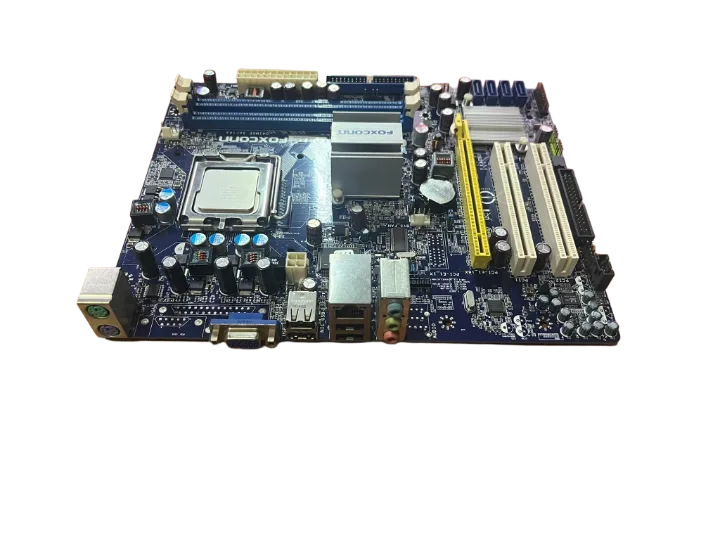

FOXCONN G41MXE G41 DDR3 LGA SOKET 775 PİN Matx Anakart( 2 EL Ürün)

FOXCONN 2 EL ÜRÜN
G41MXE intel G41 DDR3 LGA SOKET 775 PİN mATX ANAKART
PANEL SACI VARDIR
TESTLERİ YAPILMIŞTIR SORUNSUZ ÇALIŞMAKTADIR
AHM BİLGİSAYAR İYİ ALIŞVERİŞLER DİLERİZ
--------------------------------------------------------------------------------------------------------
Intel® Core™2 Quad, Core™2 Duo, Pentium® Dual-Core işlemciler, Soket T (LGA775)
Intel® 45nm Multi-Core işlemciler desteklenir
1333/1066/800 MHz (FSB)
Dual Kanal DDR3 1333(oc)/1066/800/MHz,2 DIMMs, Max 8GB
1* PCIe x16, 1* PCIe x1, 2* PCI
4*SATAII ,1*ATA100
5.1 channel Realtek IC
Gigabit LAN Realtek IC
8 USB 2.0 portu

Ürün Kodu G41MXE
İşlemci: Supports LGA 775 for Intel® Core™2 Quad, Core™2 Duo, Pentium® Dual-Core processors,Supports Intel 45nm multi-core CPU
Chipset: Intel® G41 & ICH7
Front Side Bus: 1333/1066/800MHz
Bellek: Dual channel DDR3 1333(oc)/1066/800 / 2* DIMMs, Max 8GB
Tümleşik Ekran Kartı : Intel® GMA 4500
Genişleme Yuvaları: 1* PCIe x16 slot
1* PCIe x1 slot
2* PCI bus slots
IDE: 1 * ATA 100
Serial ATA(SATA)/RAID: 4* SATAII
Ses: 5.1 channel by Realtek® ALC662
LAN: Gigabit LAN by Realtek® 8111DL
IEEE1394: N/A
Arka Panel I / O Portları: 1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x VGA port
1 x Parallel port
1 x Audio jack supports 3 jacks
4 x USB 2.0 ports
1 x RJ45 LAN port
1 x Serial port
Dahili I / O Konnektörleri: 1 x ATX 24-Pin power connector
1 x 4-pin ATX 12V power connector
2 x 4-pin CPU / System FAN connectors
1 x CD-in connector
1 x IDE connector
1 x Floppy connector
1 x Front Panel connector
1 x Intruder Alarm header
2 x USB 2.0 connectors support additional 4 ports
4 x Serial ATAII connectors
1 x S/PDIF Out header
1 x Speaker header
1 x Front Audio header
1 x IrDA header
1 x TPM header
1 x COM header
BIOS Özellikleri : 8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI 2.0
Destek CD: WHQL Drivers, Adobe Reader 7.07, Direct x 10.0, Norton 2006
Standartlar / Yönetilebilirlik: PCI 2.3, USB2.0, DMI 2.5
Form Faktörü: Micro ATX (9.6"x 7.7")
