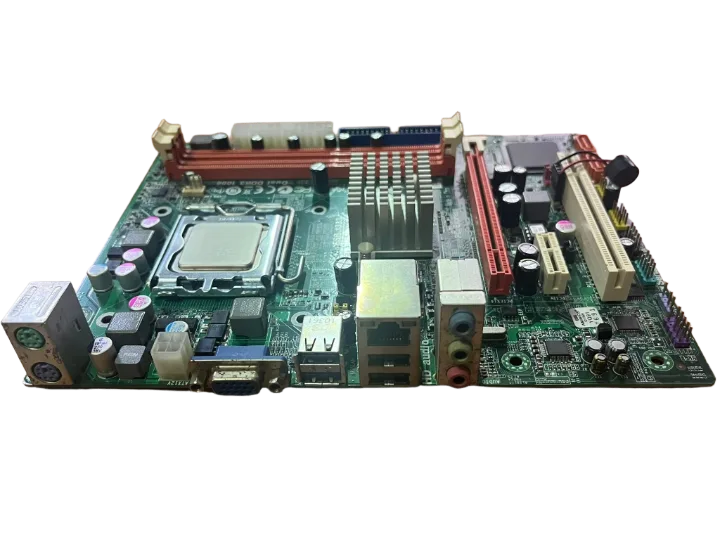

ECS G41t-r3 R:1.0 LGA 775 Intel G41 DDR3 M-atx Intel Anakart (2 El Ürün)

ECS G41T-R3 R:1.0 LGA 775 Intel G41 DDR3 Micro ATX Intel Anakart​
(2 EL ÜRÜN)
CPU İLE BERABER GÖNDERİLMEKTEDİR
PANEL SACI VARDIR
TESTLERİ YAPILMIŞTIR SORUNSUZ ÇALIŞMAKTADIR
AHM BİLGİSAYAR İYİ ALIŞVERİŞLER DİLERİZ
--------------------------------------------------------------------------------------
LGA775 socket for Core™2 Quad/Core™2 Duo/ Pentium® Dual Core/ Celeron® Dual Core/ Celeron® 400 series processors
LGA775 socket for latest Intel® 45nm Multi-Core processors
FSB 1333/1066/800 MHz
CHIPSET
Intel® G41 & ICH7
North Bridge: Intel® G41
South Bridge: Intel® ICH7
GRAPHICS
Integrated Intel Graphics Media Accelerator X4500 ( GMA X4500 )
Integrated DirectX 10 graphics processor
MEMORY
Dual-channel DDR3 memory architecture
EXPANSION SLOT
1 x PCI Express x16 slot
1 x PCI Express x1 slot
1 x PCI slot
STORAGE
Support by Intel® ICH7
1 x Ultra DMA100/66 devices
2 x Serial ATA 3.0Gb/s devices
AUDIO
92HD73 6-Ch High Definition audio CODEC
LAN
JMC260 10/100 Fast Ethernet NIC
REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
1 x D-sub(VGA)
1 x RJ45 LAN connector
1 x Audio port (Line-in, Line-out, Mic-in)
4 x USB 2.0 Ports
INTERNAL I/O CONNECTORS & HEADERS
1 x 24-pin ATX Power Supply connector
1 x 4pin CPU_FAN connectors
1 x IDE connector
1 x Speaker header
1 x Front panel audio header
1 x Front panel switch/LED header
1 x SPDIF out header
1 x Serial port header
2 x SATA 3Gb/s connectors
2 x USB 2.0 headers support additional 4 USB 2.0 Ports
1 x Chassis intrusion header
SYSTEM BIOS
AMI BIOS with 8Mb SPI Flash ROM
Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
Supports ACPI & DMI
Audio, LAN, can be disabled in BIOS
F11 hot key for boot up devices option
FORM FACTOR
Micro-ATX Size, 225mm*170mm
